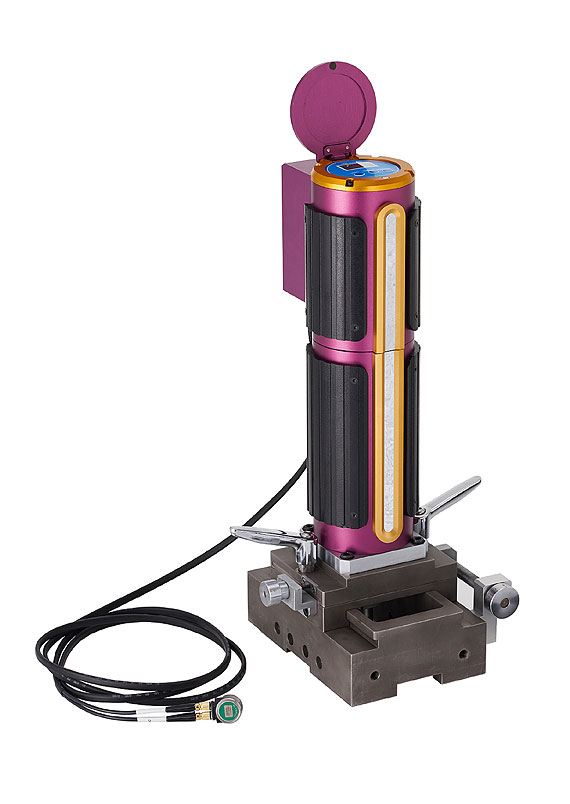

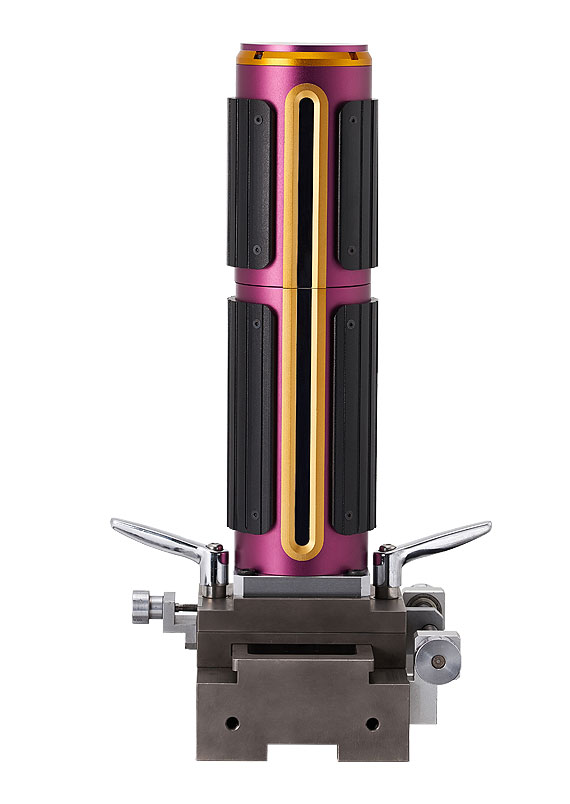

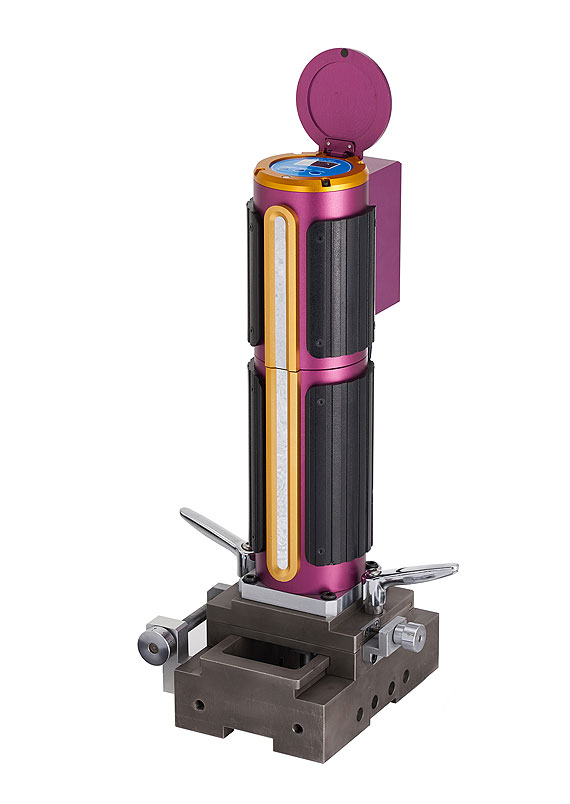

AIS3000 HD

Equipment specialized for nuclear power plant (radiation) operating environment and complex environmentTS, RS, FT, Hv all in one equipmentLightweight (titanium) dovetail included

Electronic catalog

Hardware

  • Strengthened radiation shielding function (allowable range: radiation dose rate 1 Gy/hr)
  • Dustproof structure design for high load and precision test
  • Allowable range: vibration frequency less than 80Hz, vibration acceleration 0.5~0.9g
  • Test object thickness measurement function installed
  • Use of CAN communication: Minimization of electromagnetic waves and noise to ensure stability and reliability of data communication

  • Model

  • AIS3000 HD

  • Size (Weight)

  • 3.5 x 3.5 x 13 inch (12lbs)

  • Maximum load

  • 250 lbf

  • Resolutions (Load/Depth)

  • 2.0 gf / 0.1 um

  • Full stroke

  • 1.6 inch

  • Loading rate

  • 0.05 ~ 20 mm/min

  • Communication

  • CAM Communication

  • Data Acquisition rate

  • 100 points/sec

  • Power

  • AC 110 ~ 220V

  • Analyzing computer

  • Rugged laptop

  • Indenter

  • Spherical Indenter (WC) Dia. 0.5 / 1.0 mmVickers Indenter

Software

  • Test possible in the environment of nuclear radiation dose rate (1gy/hr)
  • Over-vibration test can be tested in the maximum allowable standard (30~80Hz)
  • Size reduction, weight reduction compared to AIS 3000 equipment, possible to test in radiation environment
