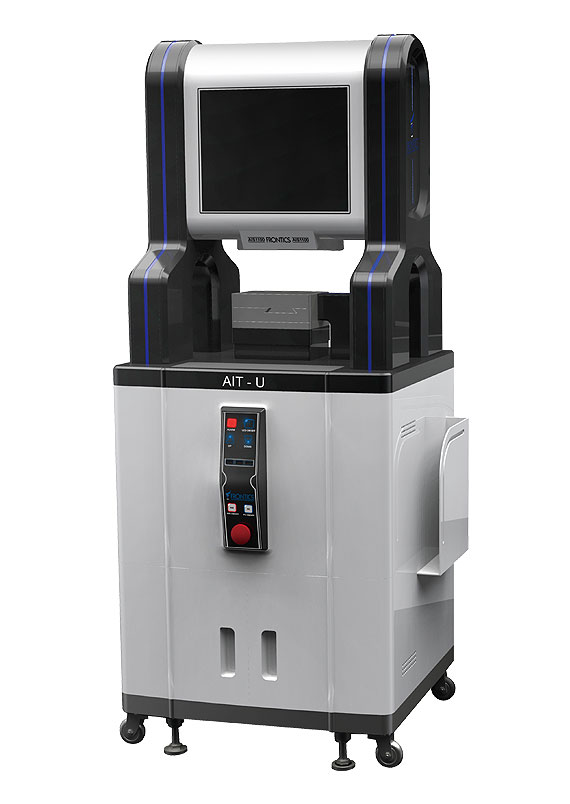

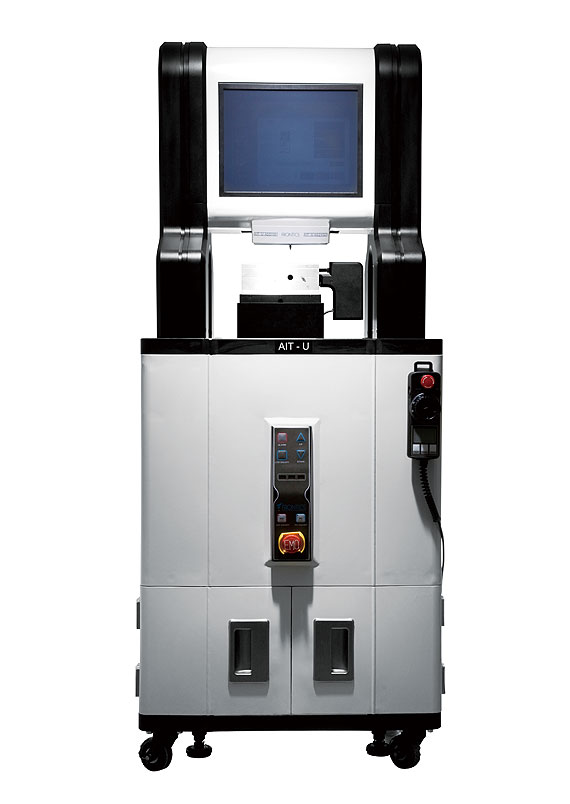

AIT-U

NON-DESTRUCTIVE EQUIPMENT FOR AUTO AND REPEATED TEST
New laboratory type model. AIT-U (Advanced Indentation System –U) is dedicated test equipment to measure tensile properties and Vickers hardness in the laboratories.
Full automatic test function and self-inspection system are included for easy operation. Indentation module and Control PC are attached to the equipment to allow user to install in a limited space.

Electronic catalog

Hardware

  • Non-destructive Tensile properties evaluation
  • Laboratory type IIT system (Automatic test module)
  • LCD Touch Panel(outer input device attachable for requirements)

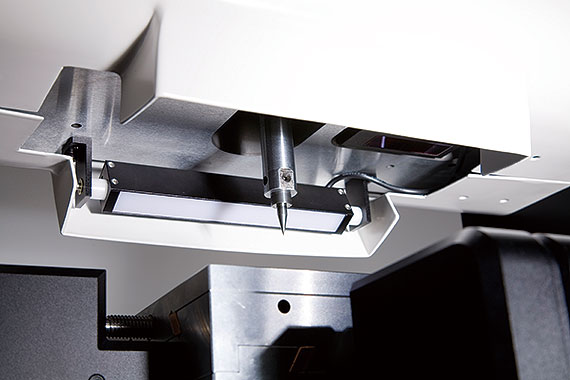

  • Laser distance measurement
  • Self calibration
  • LED lightning

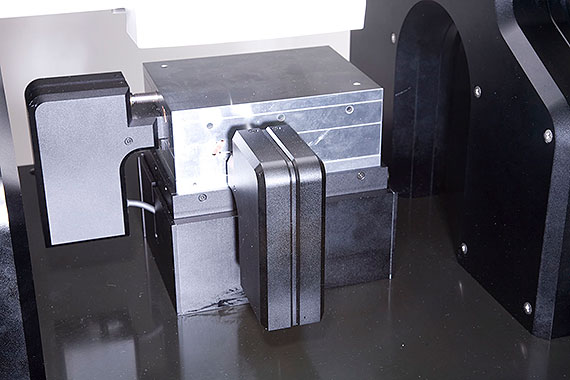

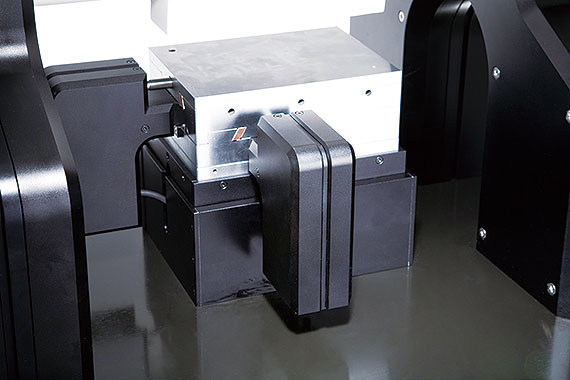

  • Automatic Moving System
  • Jog Shuttle function for remote control and 3-Axis stage operation
  • Conventional Workstation with storage space

  • Model

  • AIT-U

  • Size (Weight)

  • 24 x 20 x 55 inch (480 lbs)

  • Maximum load

  • 430 lbf

  • Resolutions (Load/Depth)

  • 5.6 gf / 0.1 um

  • Full stroke

  • 1.6 inch

  • Loading rate

  • 0.05 ~ 20 mm/min

  • Communication

  • RS-422 (USB)

  • Data Acquisition rate

  • 100 points/sec

  • Power

  • AC 110 ~ 220V

  • Analyzing computer

  • Integrative model combining equipment and control PC

  • Indenter

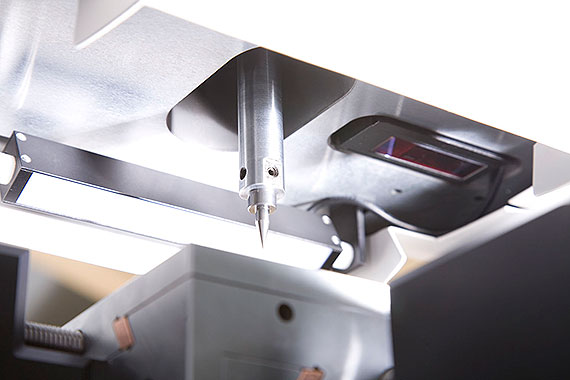

  • Spherical Indenter (WC) Dia. 0.5 / 1.0 mm

Software

  • Tensile properties software based on the theory of IIT (Instrumented Indentation Technique) - evaluation items : yield strength, tensile strength, work-hardening exponent, elastic modulus
  • Realize real-time measuring system such as existed AIS series.
  • One-click automatic test (Full automatic software) and adopting software to change a testing location automatically.
  • Embed a auto-mapping test module
  • Possible to use independent AIT-U software suitable for operating all-in-one touch panel.
  • Software adopted with touch-screen method and possible to use AIT-U software with consisted of a existed external input device.
  • Adopt self-inspection software of IIT system.
  • Possible to control 3-axis stage automatically by using multi-function key of the software
