Attachment

Accessories

Custom jig
Attachment
For field use

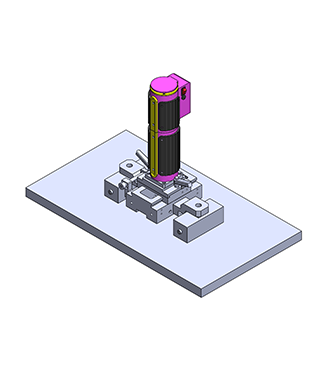

Flat Magnet System

Flat Magnet System

  • Target

  • Plate

  • Specification

  • Maximum magnetic force: 150 kgf

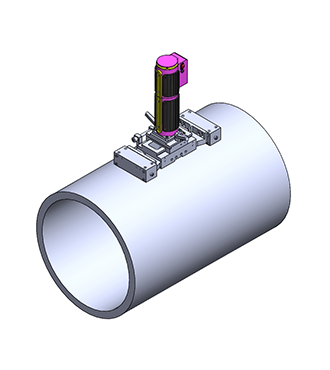

Double Curvature Magnet System

Double Curvature Magnet System

  • Target

  • Pipe

  • Specification

  • Pipe

    Magnet 10~20 inch or can be attached from various angles

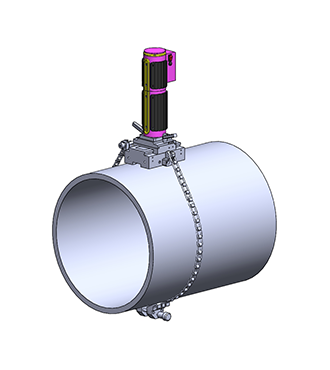

Chain System

Chain System

  • Target

  • Pipe

  • Specification

  • 8inch ~24inch Pipe

    Can be attached from various angles

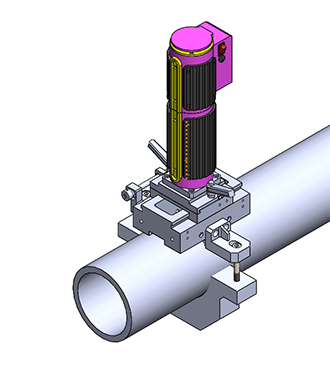

U-Block System

U-Block System

  • Target

  • Pipe

  • Specification

  • 3 inch ~ 6 inch Pipe

    Can be attached from various angles

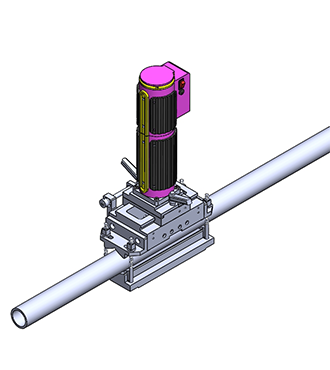

V-Block System

V-Block System

  • Target

  • Pipe

  • Specification

  • 3/4 inch~ 2inch Pipe

    Can be attached from various angles

Experimental

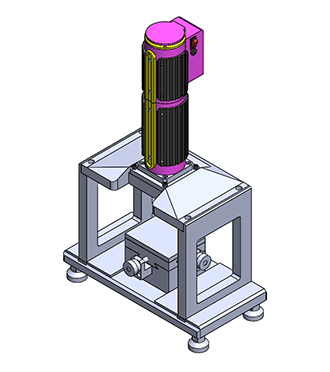

RS Micro Positioning System

RS-MPS

  • Target

  • Plate, Pipe

  • Specification

  • 3-Axis Stage

    X-Axis : 219mm(1mm/rev)

    Y-Axis : 70mm (1mm/rev)

    Z-Axis : 100mm(1mm/rev)

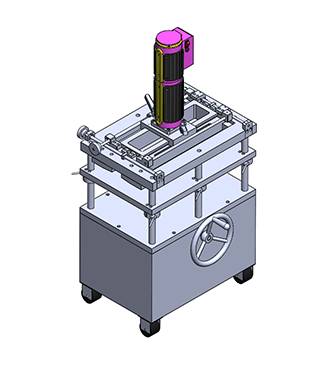

Micro Positioning System

MPS

  • Target

  • Flat specimen

  • Specification

  • 2-Axis Stage

    Stroke 25mm (1mm/rev)

    MPS Block (5t,20t,30t)

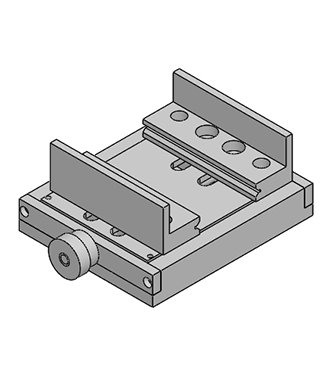

    MPS Vise (Basic)

    Swivel Mount (Optional)

Custom jig design (custom jig)

When a jig cannot be used depending on the installation location of the attachment equipment and the shape of the specimen, we design and manufacture a jig optimized for the test environment requested by the customer to obtain reliable data.

Heterogeneous material

Wheel

Groove

H beam

Accessories
Accessories

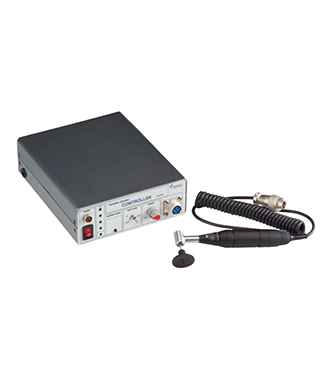

Portable Grinder

Portable Grinder

  • Target

  • Rechargeable system

    Operating time: about 4 hours

  • Specification

  • Portable grinder

    Speed control and rotation direction change possible

    Sand Paper

    (Basic-#Gr100~#Gr1500)

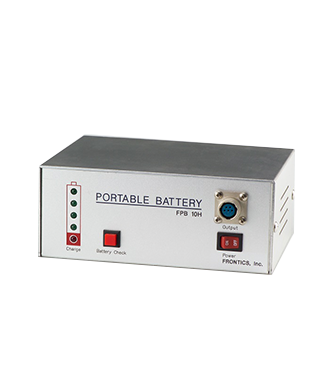

Portable Battery

Portable Battery

  • Specification

  • Rechargeable system

    Operating time: about 5 hours

    Portable power system

    Primary battery system

Field accessories

Raidial Dovetail Slider

Raidial Dovetail Slider

  • Target

  • 420x425x139(mm)

    30.4kg

  • Specification

  • X Axis ±35mm

    Y Axis ±50mm

    Motor's automatic control method

    USB communication

Lightweight Dovetail-Sliders

Lightweight Dovetail-Sliders

  • Target

  • 180x122x86mm

    4.05kg

  • Specification

  • X Axis 75mm Resolution

    1mm/rev

    Y Axis ±3mm Resolution

    0.5mm/rev

MPS accessories

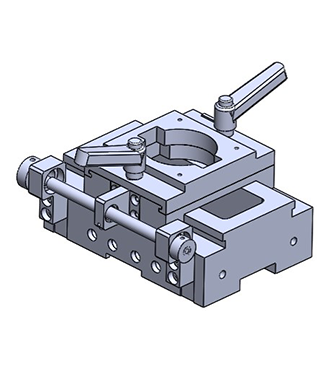

Vise Jig

  • Target

  • Plate, Pipe

  • Specification

  • Multiple shapes can be mounted

    Thin plate and small pipe can be mounted

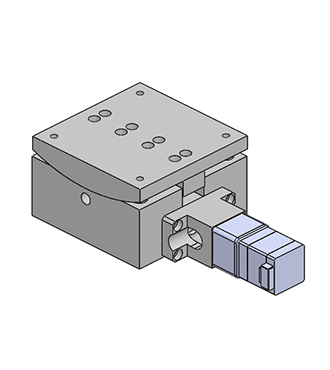

Tilting jig

  • Target

  • Plate

  • Specification

  • Automatic control possible

    Standing test angle ±15
